Brand: FUHATA FILM (FUJIFILM IX..XD series film)
Type: IX100FXD, IX80FXD, IX50FXD
Packing: Interleaved(Sheet film) Non Interleaved (Sheet film or roll film)
| ISO 11699-1 | FUJI FILM | FUHATA FILM | AGFA | CARESTREAM |
| C3 | IX50XD | IX50 FXD | D4 | MX125 |
| C4 | IX80XD | IX80 FXD | D5 | T200 |
| C5 | IX100XD | IX100 FXD | D7 | AA400 |
Types and characteristics:
| Type | Application | Characteristic |
| IX50FXD |
Aluminum (alloy) castings electronic component Aircraft and engine inspection Pipeline inspection |
A film with fine particles, high contrast, and excellent high definition, with outstanding detectability. Suitable for shooting light alloys such as aluminum alloy, usually used directly or in conjunction with lead intensifying screens. |
| IX80FXD |
Aluminum (alloy) castings Steel welding section Aircraft and engine inspection Pipeline inspection |
A film with fine particles, high contrast, and excellent high definition, suitable for detecting subtle defects. Suitable for low-pressure X-ray inspection of synthetic resins and light metals, as well as for inspecting thick samples through high-pressure X-ray and gamma ray inspection. Usually used directly or in conjunction with lead sensitive screens. |
| IX100FXD |
Steel welding section Steel Casting Department Aircraft and engine inspection Pipeline inspection |
A standard film designed specifically for fine particles and high contrast, suitable for inspecting thick specimens ranging from low-voltage light metal photography to high-voltage X-rays and gamma rays. High sensitivity and wide application range. Usually used directly or in conjunction with lead sensitive screens. |
| Type | Relative sensitivity (IX100 is 100) | |||
| 100KV | 200KV | Ir-192 | Co-60 | |
| Direct exposure) | Lead intensifying screen | |||
| IX50FXD | 35 | 30 | 30 | 30 |
| IX80FXD | 55 | 55 | 55 | 55 |
| IX100FXD | 100 | 100 | 100 | 100 |

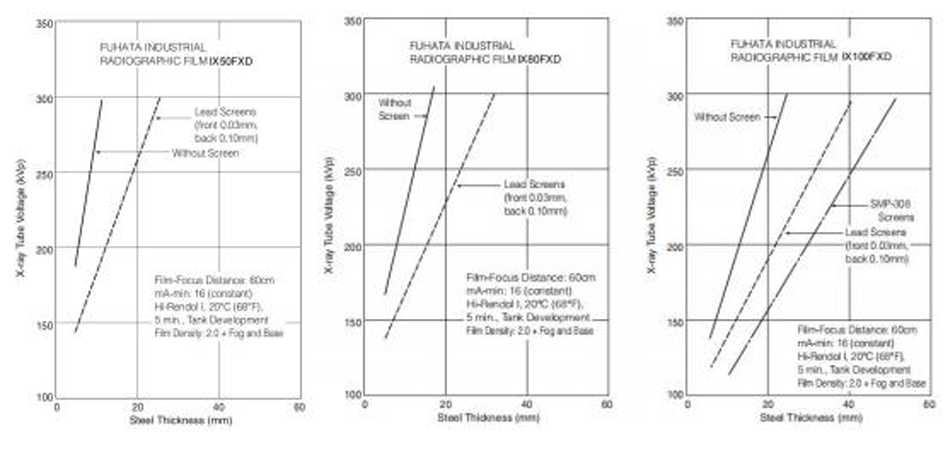

Exposure Chart
