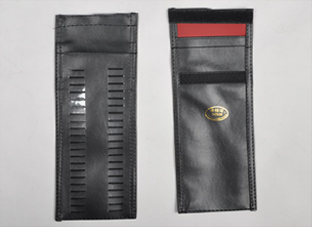

1. Industrial film cassette
Material: PVC or Leather;
Shape: for sheet or roll film;
Magnetic or Nonmagnetic;
Size: Any size customized
-

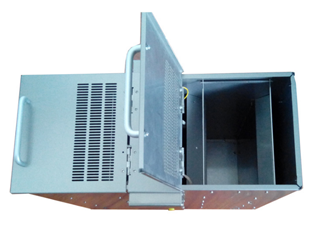

2. NDT Film dryer
Drying time: 5-30 minutes Adjustable
X ray film dryer size: 300x500x500mm
Weight:25 kgs
-

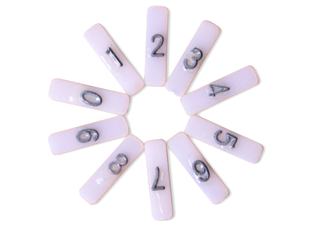

3. Lead Numbers
Non-magnetic/ Magnetic Lead Numbers
Type:Numbers/Letters/Symbol
Size:5*3*0.8mm/7*4*1mm,
9*6*2mm/13*9*1.6mm
-

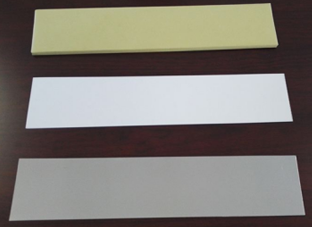

4. Lead Intensifying screen
Size: thickness - Customized or 0.125mm, 0.1mm, 0.03mm
W*L : Customized or 10*24cm, 10*40cm, 10*48cm, 70mm*L, 100mm*L
Applicable rays: X ray, Gamma ray
-

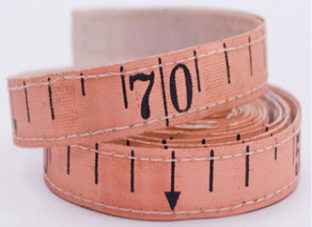

5. Calibration lead ruler
-

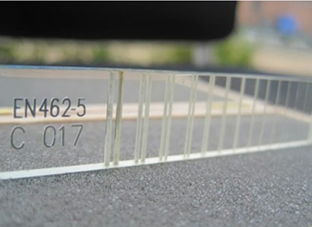

6. Image quality indicators
-

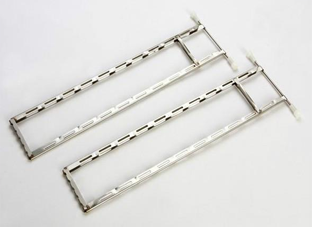

7. Film developing clip
Material: stainless steel
Size:Customized
8. Industrial LED film viewer
Type: Q1 and Q5
Brand: NDTQUAM
Technical Parameters:
Observed blackness: ≥4.5
The maximum illumination: 220000lux
Selection: aircraft-grade material selected
Machine weight: 0.3kgs(Q1) 2.3KG(Q5)
Total power: 28W(Q1) 45W(Q5)
Window size: 113*58mm(Q1) 220 * 60mm(Q5)
Exterior dimensions : 176*87*34 mm (Q1) 403 * 153 * 30mm(Q5)
Power supply: ~ 220V, DC24V / 3A
9. Black and white densitometer
Type: DM555, DM555A
DM555 Black and white densitometer specification:
density range: D=0.00-4.50(DM555), D=0.00-5.00D (DM555A)
Reading stability: ±0.01D
measured density tolerance: (0.00D-3.00D)
±0.02D,(3.00D-4.50D)±0.03D
(4.50D-5.00D)±0.04D
power supply: AC220V ±10%, 50Hz
densitometer size:110x116x330
Aperture size: Φ2.0mm
value desplay form: Three digit number
densitometer weight: 1.5 kgs
power: Below 4W
10. Portable radiation measuring instrument
Type: R-EGD
Detector: Energy compensated GM counter tube
Measurement range: Measurement rate 0.01uSv/h-15mSv/h, cumulative dose: 0.00uSv-999.9Sv
Measurement accuracy of radiation monitoring instrument: less than or equal to ± 5% (at 2mSv/h)
Sensitivity of radiation monitoring instrument: 5CPS/uSv/h (equivalent to 137Cs)
Energy range of radiation monitoring instrument: 48KeV-3.0MeV
Alarm sound intensity: greater than 80dB (within 50cm)
Display unit: dose rate uSv/h, cumulative measurement: uSv, mSv, Sv
Radiation inspection instrument power supply: 3.7V lithium battery, rechargeable
Power consumption: The overall power consumption of the machine is less than or equal to 120mW (excluding display backlight power consumption)
Weight of radiation inspection device: 320g (including battery)
Size: 200x100x35mm
11. Nuclear radiation instrument
Type: RP6000
Detector: 30x25mm diameter, Nal scintillation crystal
Measurement range: Measurement rate 0.01-200.00uSv/h, cumulative dose: 0.00uSv-999.9Sv
Sensitivity: ≥ 350CPS/uSv/h
Measurement time: 5-120 seconds adjustable
Alarm threshold: Both cumulative metering and dose rate thresholds can be set arbitrarily
Measurement methods: real-time measurement and timed measurement
Display units: equivalent dose rate uSv/h, absorbed dose rate uGy/h, cumulative measured uSv, count rate CPS
Working temperature: -10 to+50 ° C, (less than or equal to ± 10%)
Power supply: 2 standard No.1 batteries
Power consumption: The overall power consumption of the machine is less than or equal to 120mW (excluding display backlight power consumption)
Weight: 1.7kgs (including battery)
Size: 420x180x88mm
12. Industrial Radiographic Film Fully Automatic Processor
Brand: QUAMNDT
Type: HT450
Feature:
--This machine has filtering devices for developing and fixing solutions, and the
rollers are acid, alkali, corrosion-resistant, and waterproof,
avoiding black spots and watermarks on the film
--Fully automatic liquid filling and replenishment
--Advanced digital control circuit
--Efficient centrifugal fan and drying air duct
--Energy saving automatic standby
--Advanced non-contact guided transmission system eliminates scratches and
card damage to the film
--Made of high-quality ABS engineering plastic and 304 stainless steel, it is sturdy
and durable.
Main technical performance parameters
|
Film processing length |
minimum 100, maximum greater than 1000 |
|
Film processing width |
35-435mm |
|
Development time |
50S-210S adjustable |
|
Film processing capacity |
Under normal 8-minute standard conditions, 80 * 360, greater than 160 sheets |
|
Liquid temperature |
20-40 ℃ adjustable and controllable |
|
Film recognition mode |
fully enclosed infrared photoelectric sensor, waterproof and anti-corrosion |
|
Drying temperature |
adjustable and controllable between 45-70 ℃ |
|
Standby mode |
Can cycle standby for 24 hours |
|
Pharmacy capacity (L) |
25 for developing, 8 for stopping, 25 for fixing, 25 for washing |
|
Environmental temperature(℃) |
5-40 ℃ |
|
Liquid filling form |
automatic |
|
Liquid loading speed |
2.3L/m |
|
Environmental humidity |
Relative humidity not exceeding 80% |
|
Power supply |
198~242v/50HZ/13A A |
|
Fluid replenishment form |
automatic fluid replenishment at the liquid level, with the option to increase the preset washing volume for fluid replenishment |
|
Volume (including rack) |
1210 * 730 * 1170 (including casters) |
|
Weight (Kg) |
90 |
|
Washing method |
tap water (with purification filter) |
13. Radiation Personal Dosimeter
Type: RG1100
Detector: Energy compensated GM counter tube
Measurement range: Measurement equivalent rate 0.01uSv/h-1.0mSv/h, cumulative dose: 0.00uSv-999.9Sv
Sensitivity: ≥ 1.5CPS/uSv/h (equivalent to 137Cs)
Energy response: 48KeV-3.0MeV
Relative error: less than 5% (at 1mSv/h)
Power supply: 2 standard No. 7 batteries
Working temperature: -10 to+50 ° C, (less than or equal to ± 10%)
Size: 70x40x95mm
Weight: 100g (including battery)
