Case Overview: A certain automotive research institute was commissioned by a new energy vehicle battery manufacturer to contact HATATEST, requesting us to design a solution for internal quality inspection of their new energy vehicle battery panels and manufacture a digital imaging system capable of detecting new energy vehicle battery panels.

Customer requirements:
1. Conduct spot checks on the new energy vehicle battery panels they produce,
2. By using DR imaging to visualize the internal structure of the battery panel,

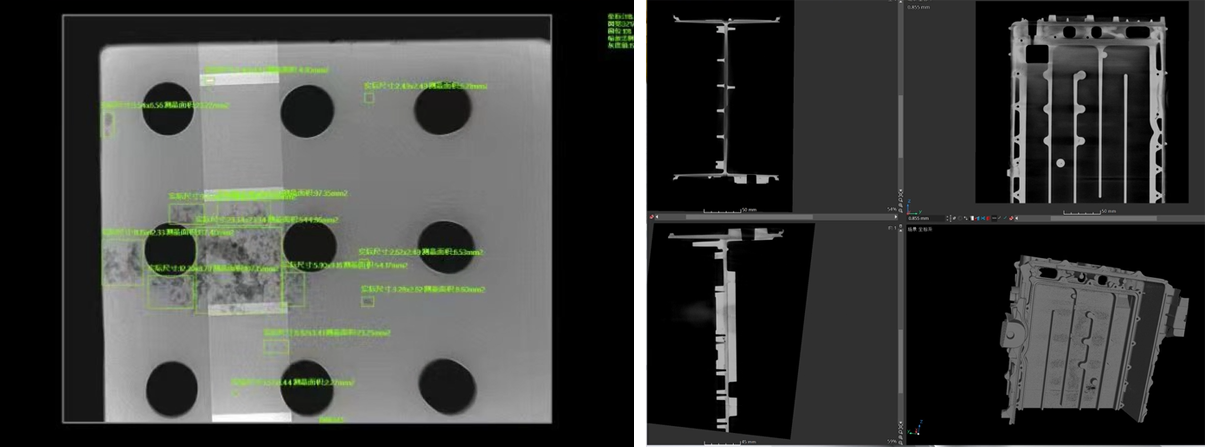

3. The software can automatically identify internal defects in the battery board,
4. The corresponding tooling design can maximize the realization of industrial automation testing

Key points of solution design:

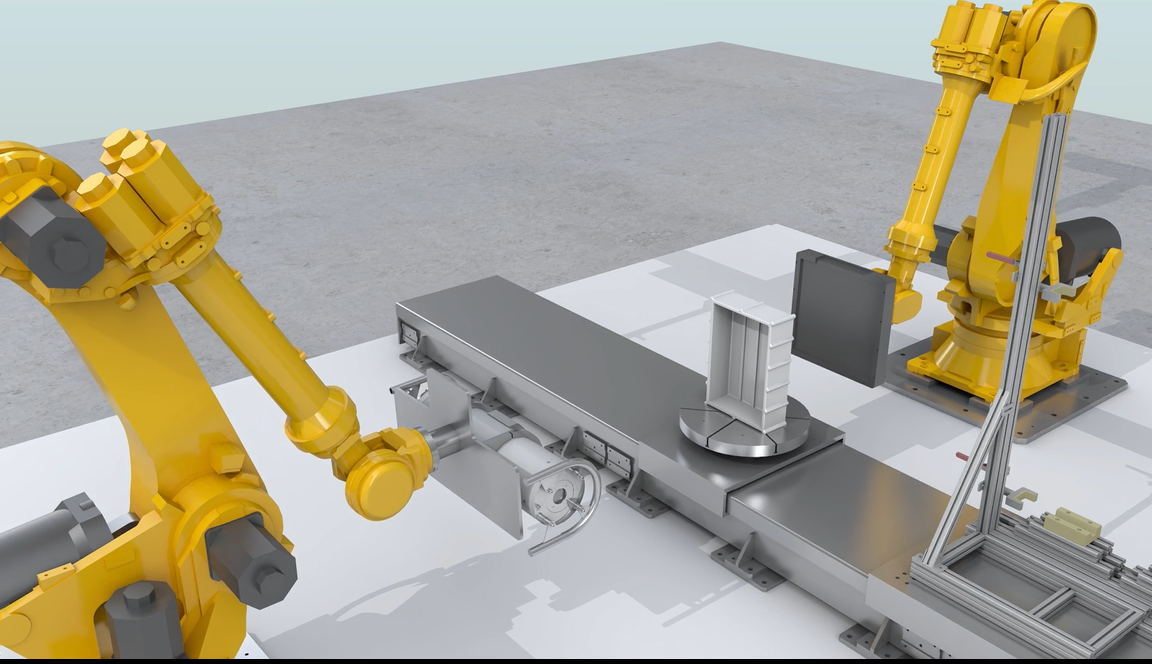

1. Use a dual arm robot (6-axis robotic arm) to support the radiation source and flat panel detector
2. The system consists of a lead room system, a solar panel lifting system, a dual arm robot detection fixture system, detection equipment, a monitoring system, and an operation console.

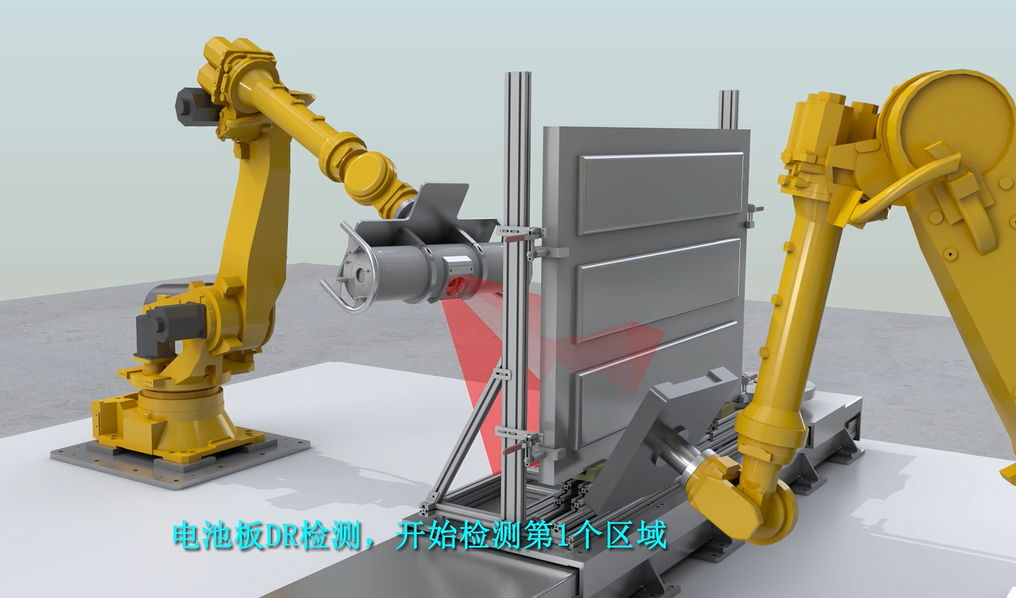

3. Large battery panels are tested in 9 different areas
4. The electronic control casting box of new energy vehicles can be placed on a rotating platform for DR testing or 360 ° rotating CT scanning testing.

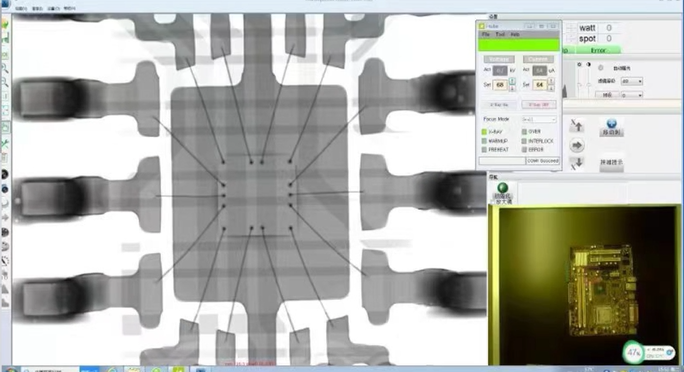

5. For small components, micro focal ray sources can be used for detection
