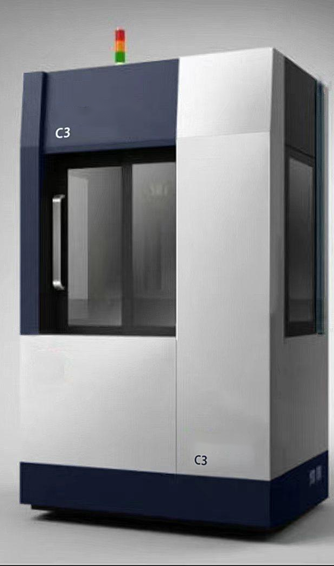

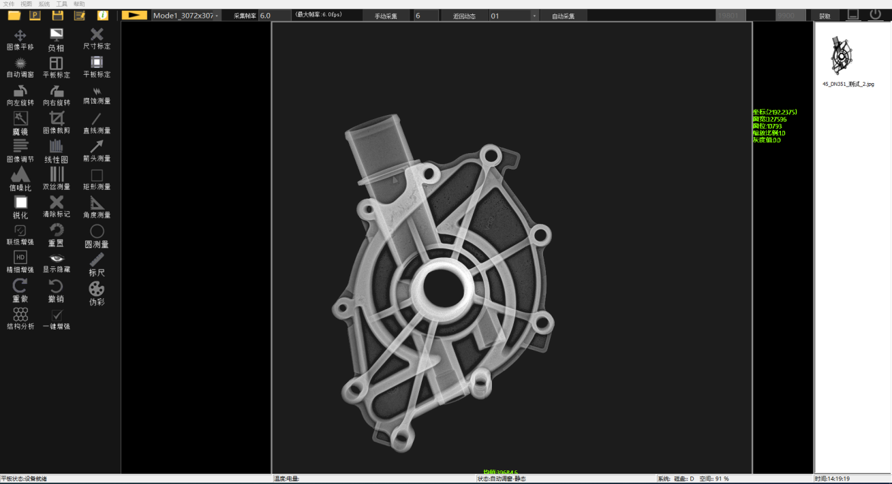

Small size casting DR equipment
| Type: |
HATATEST C3 |
|
Energy |
160kv |
|
Detector imaging area |
430x430mm |
|
Pixel size |
100/139um |
|
Spatial resolution |
5/3.6 lp/mm |

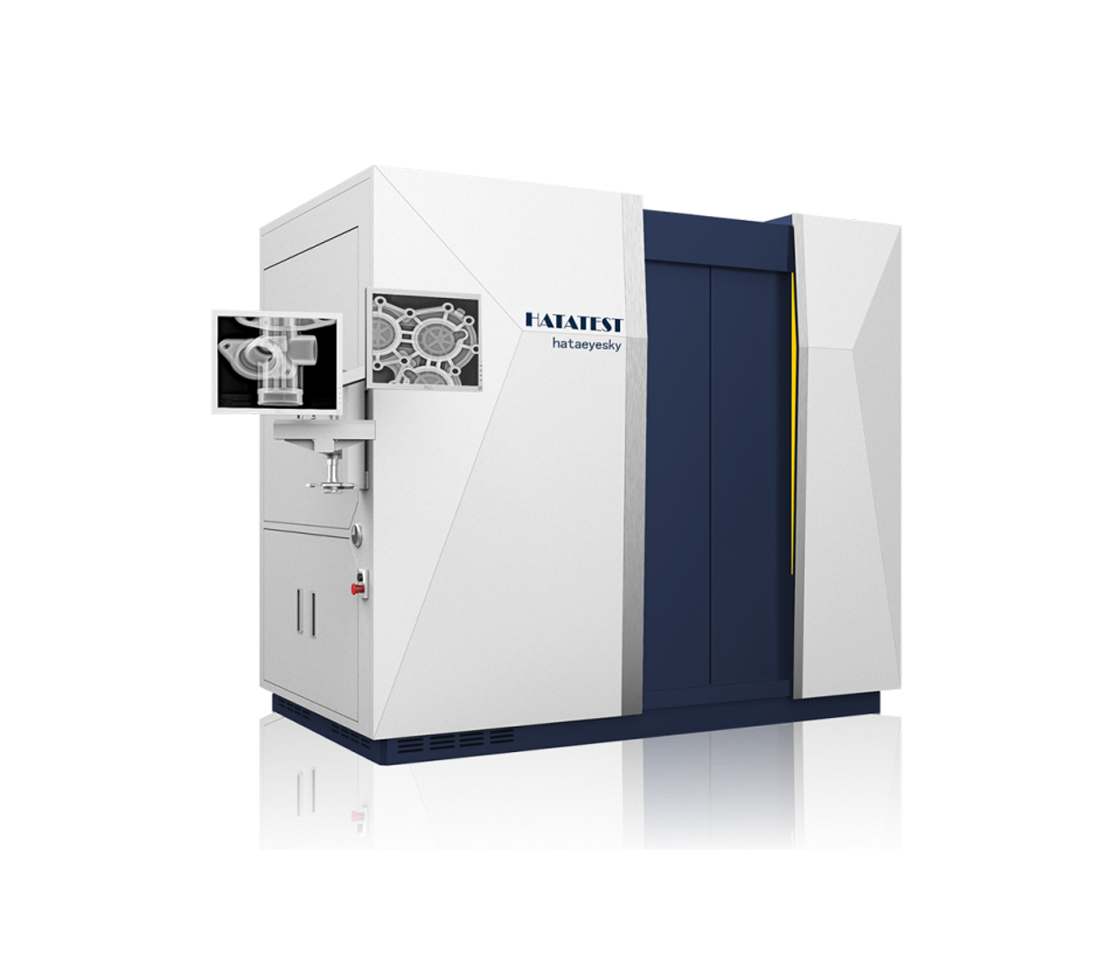

HATATEST hataeyesky series die casting DR system
| Type |
E3 |
E4 |
E5 |
E6 |
|
Energy |
160kv |
225kv |
320kv |
450kv |
|
Detector imaging area |
430x430mm |
430x430mm |
430x430mm |
430x430mm |
|
Pixel size |
100/139um |
100/139um |
100/139um |
100/139um |
|
Spatial resolution |
5/3.6lp/mm |
5/3.6lp/mm |
5/3.6lp/mm |
5/3.6lp/mm |
|
Detection efficiency(h) |
≤60/h |
≤60/h |
≤60/h |
≤60/h |
|
Ray source |
Type |
E7 |
E8 |
||
|
Maximum tube voltage |
160KV |
200KV |
160KV |
200KV |
|
|
output power |
480W |
500W |
480W |
480W |
|
|
Tube voltage |
30-160kV |
80-200kV |
30-160kV |
80-200kV |
|
|
Product size(mm) |
414.5x392.5x143 |
446x384.5x143 |
414.5x392.5x143 |
446x384.5x143 |
|
|
Ray angle |
Taper 40° |
Taper 40° |
Taper 40° |
Taper 40° |
|
|
focus |
0.5mm |
0.6mm IEC60336 |
0.5mm |
0.6mm IEC60336 |
|
|
Imaging panel |
Imaging Panel size |
470mmx470mm |
|||
|
Imaging area |
427mmx427mm |
||||
|
scintillator |
Cesium iodide/gadolinium oxysulfide |
||||
|
Image sensor technology |
amorphous silicon TFT |
||||
|
pixel dimensions |
139um |
||||
|
Maximum acquisition frame rate |
6 frame/Second(3072x3072mm, 427x427mm) |
||||

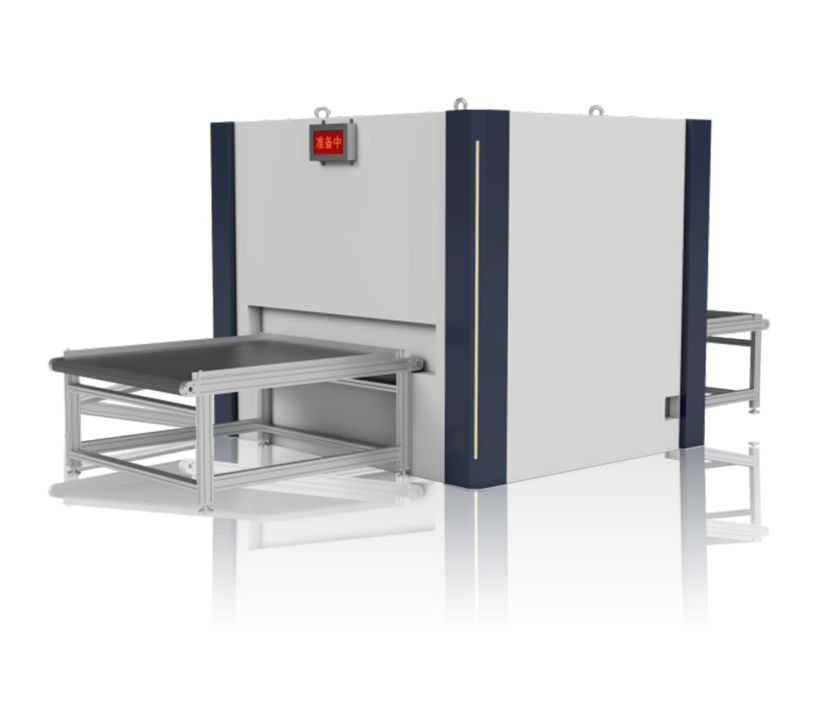

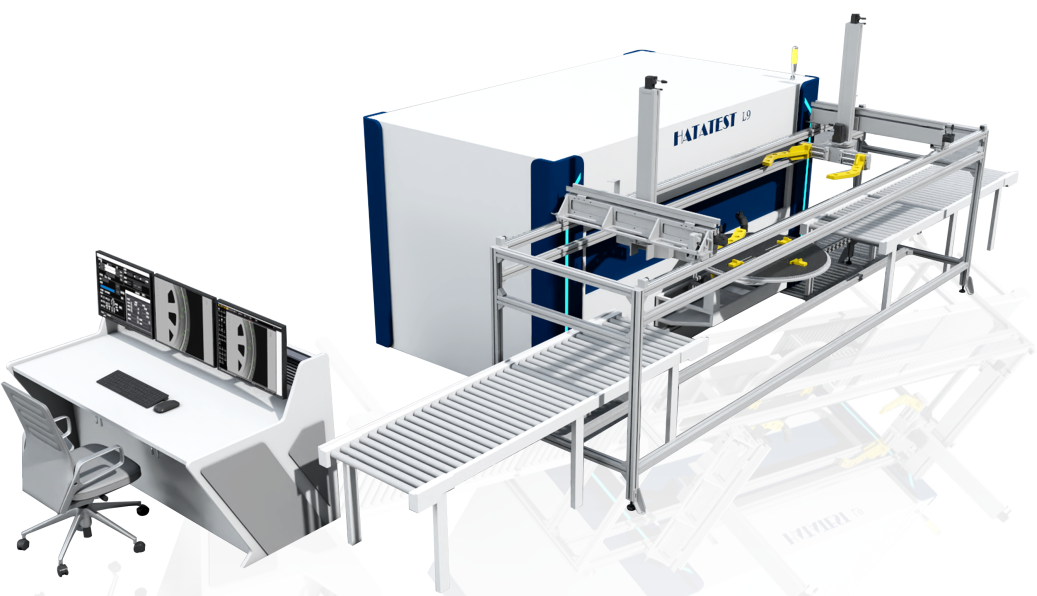

Pass through type casting inspection imaging system
|
Energy |
160KV |
225KV |
320KV |
450KV |
|
Detector imaging area |
43x43cm |
43x43cm |
43x43cm |
43x43cm |
|
Pixel size |
100/139μm |
100/139μm |
100/139μm |
100/139μm |
|
Spatial resolution |
5/3.6lp/mm |
5/3.6lp/mm |
5/3.6lp/mm |
5/3.6lp/mm |
|
Detection efficiency(h) |
≤150/h |
≤150/h |
≤150/h |
≤150/h |
|

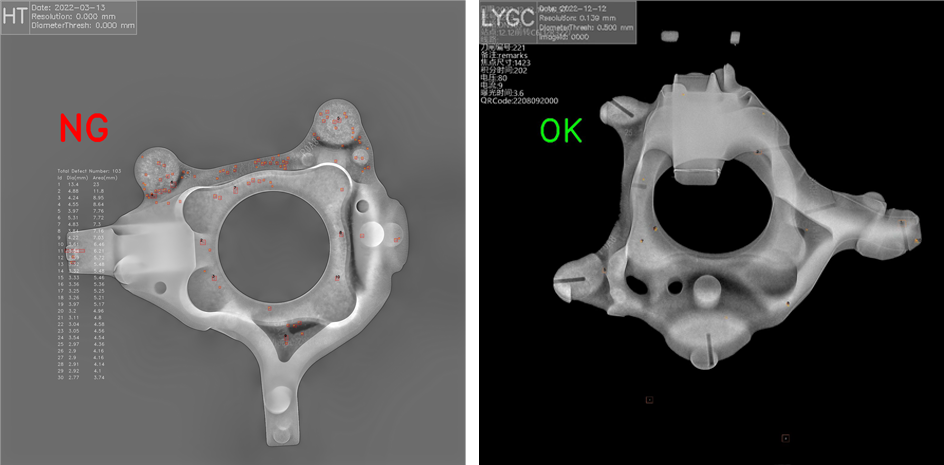

Defect recognition pattern |
ADR(automatic) |
ADR(automatic) |
ADR(automatic) |
ADR(automatic) |
Rotary subframe DR Detection system
| X-Ray source |
225KV |
320KV |
|
Detector imaging area（mm） |
430*430 |
430*430 |
|
Pixel size |
100/139μm |
100/139μm |
|
Spatial resolution |
5/3.6lp/mm |
5/3.6lp/mm |
|
main machine Dimension(m) |
2.7*1.6*2.0 |
2.7*1.6*2.0 |
