HATATEST jointly established a non-destructive testing technology research and development center with Beihang University on January 3, 2018. Henan Huatan Aerospace Detection Science Research Institute will be established on July 10, 2023. These events signify HATATEST's commitment to quality control in the aerospace industry. HATATEST's existing clients include a certain aerospace engine company, an aircraft industry group company, a missile research institute, and an aviation industry company.

This equipment is manufactured by us for a certain aviation engine enterprise. It is designed for rotating products with a diameter not exceeding 1400mm, a height not exceeding 1500mm, and a weight not exceeding 250Kg. It performs single wall single image 100% radiographic testing on the brazing seams and channels between the inner and outer walls of the product, achieving automation in the testing process.

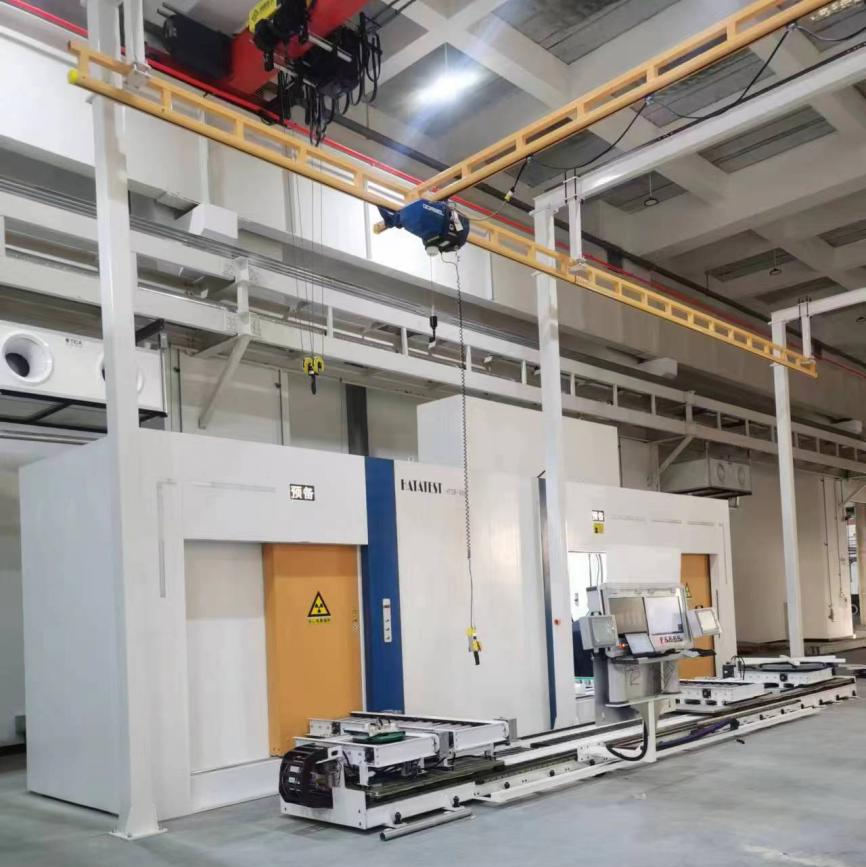

This set of equipment was developed, designed, and produced by us for a certain aircraft industry group. Its functional features include:
1) Within a space of 9m in length, 7m in width, and 5m in height, the system is capable of achieving a maximum size of 7m x 2.5m for flat panel parts in conjunction with detectors. Parts that can be automatically detected by detectors,
2) For metals of different thicknesses, the detection sensitivity meets the A-level sensitivity requirements of GJB1187 standard.
3) The sandwich part of the inspected workpiece can achieve 100% transparency.
4) When using fully automatic fixtures to clamp workpieces, ensure that there is no deformation or damage to the workpiece during and after the inspection process.
5) The control and acquisition parts have the required anti-interference ability.

This product is an industrial CT detection system designed by us for a certain aviation industry group. Its functional features include:
This system consists of five parts: detection system, software system, automation control system, monitoring system, and human-computer interaction system.
This CT detection system provides a fixed radiation source model CF-GIT-450HP/11 and a CT digital radiation detection system model Libra 15UINE micro focus radiation source. This solution solves the defect detection of product welds; Can have functions such as cone beam, spiral, bias, local and splicing; The collection and analysis software adopts HT; the 3D visualization reconstruction software and casting analysis software adopt German VG.
