HATATEST digital imaging detection system software is an independent digital image processing system developed by our company.HATATEST NDT DR software was produced specialized for Industry non-destructive testing.
HATATEST NDT digital imaging software has some special function, like :Accurately measure the depth of defect (0.01mm Precision), Intelligently eliminate scattered x ray,multi-energy fusion Patent technology,3D seamless stitching,One-click cascaded fine enhancement patented technology,Defect automatic recognition function,Images Enhancements in real time, all of them are very practical in the project.
Accurately measure the depth of defect
The traditional gray scale contrast method can only infer the approximate depth of defects, and it is difficult to accurately judge the depth of defects, especially crack defects, unless the opening defects are very serious, the blackness or gray level is very obvious. It is difficult to judge the depth of superficial and extensible cracks.
Our technical team can accurately measure the defect depth with an accuracy of 0.01 mm by precise calculation of the grooved test blocks and imaging software. This technology is embodied in our software.
Option A If the defect point shown in the figure is in the same position as the calibration line of 0.9mm depth of the annular specimen, the defect and corrosion depth can be determined to be 0.9mm.

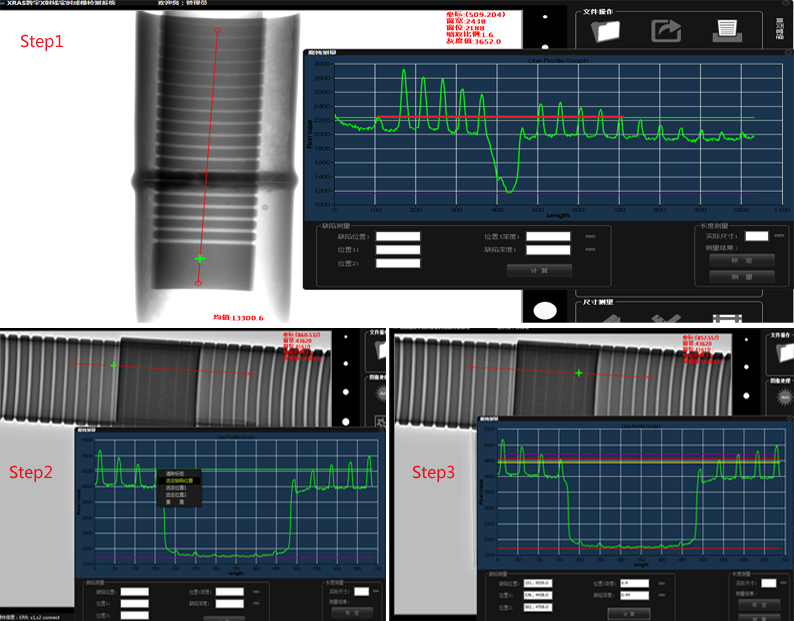

Option B Defect, corrosion depth and specimen depth under different conditions . as shown in the figure, through three-step operation, the software automatically calculate the defect depth to be 0.44mm
Intelligently eliminate scattered x ray

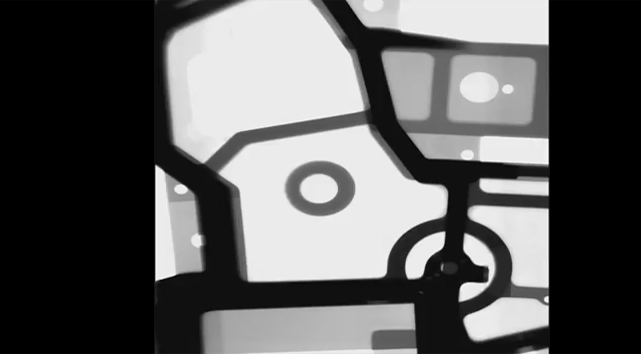

The intelligent filter grating function of HATATEST software can suppress the ray scattering effect, reduce image noise and improve edge sharpness. When the X-ray reaches the detector surface, it is no longer necessary to use physical filter grating to filter, and all scattering and straight rays are collected.
Multi-energy fusion Patent technology

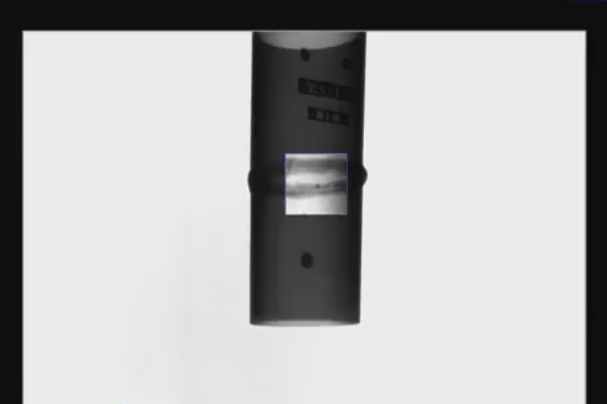

In practical inspection, we often encounter different materials or thickness on the same workpiece. Traditional solutions require multiple exposures of varying voltage, which greatly slows down the detection efficiency. HATATEST technical team solved this problem by instantaneous superposition imaging technology. This is the multi-energy fusion technology in HATATEST software.
3D seamless stitching

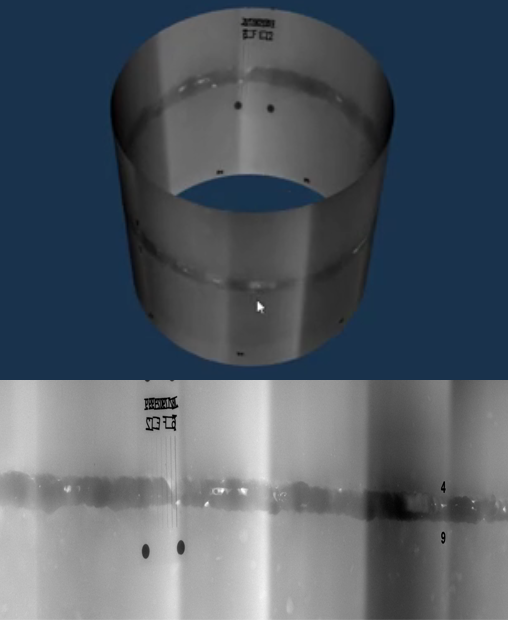

Seamless splicing technology can not only seamlessly splice multiple X-ray images into 2D (for steel plate) but also 3D (for pipeline).
One-click cascaded fine enhancement patented technology

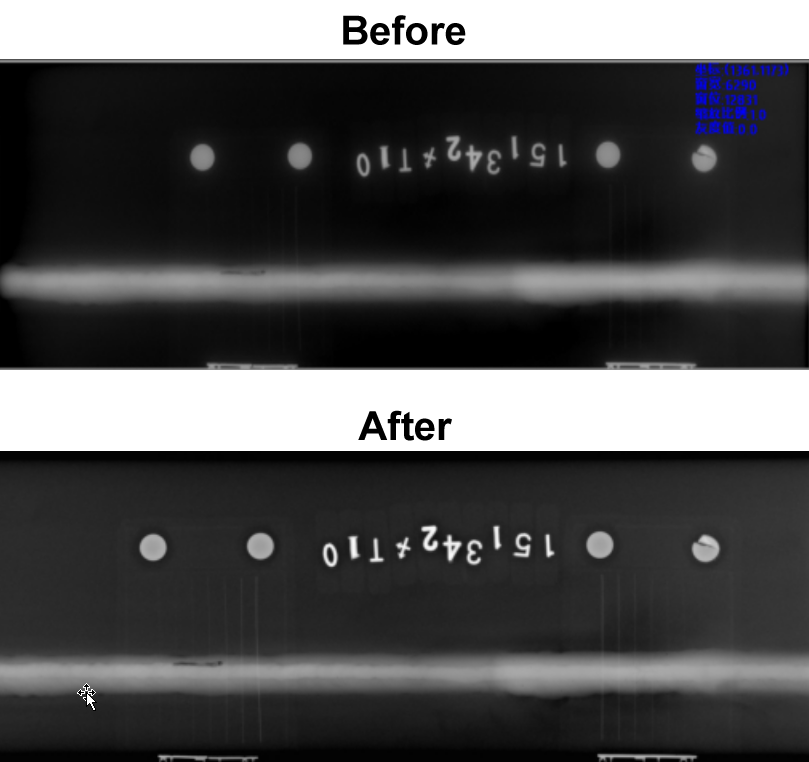

The patented technology of one-key cascaded fine enhancement technology of HATATEST X-ray digital imaging system software greatly improves the efficiency of X-ray image acquisition, processing and evaluation, and avoids the repetitive work of detectors and reviewers.
Defect automatic recognition function

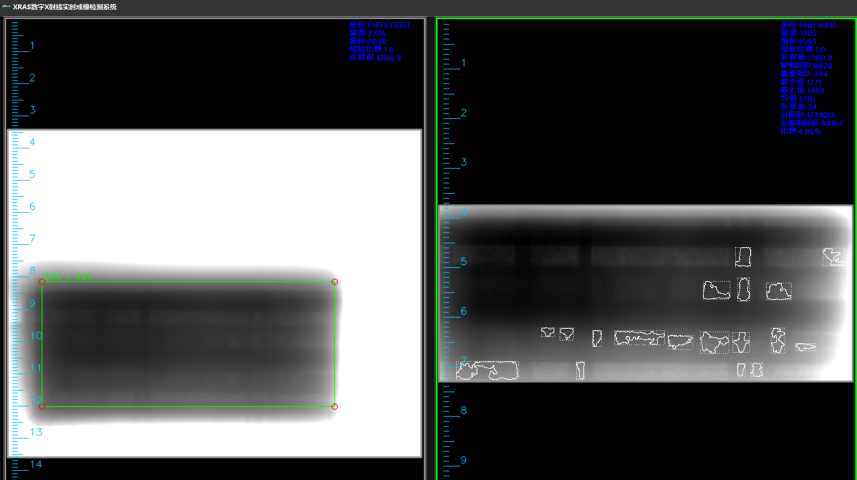

HATATEST X-ray digital imaging software has the function of automatic defect identification.

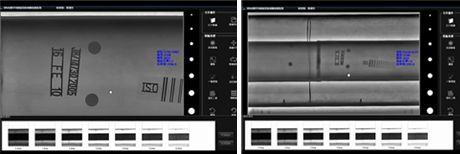

Images Enhancements in real time

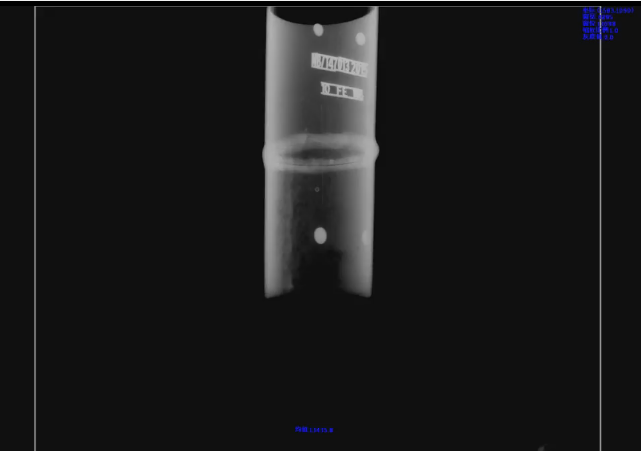

HATATEST X-ray digital imaging software has the function of Images Enhancements in real time.
Magic mirror function
HATATEST NDT X-ray digital imaging software has the Magic mirror function. With this function, the users can achieve local unlimited scaling, image enhancement. Locally generated image files can be stored and printed independently.
