Case Overview: A client in West Africa needs to inspect the welds of oil pipelines. The pipeline is made of seamless steel pipes with sizes of 16 ", 20", 24 ", and 28". The single wall thickness of the pipeline is 15-19mm, and there is a 3.5mm 3LPE anti-corrosion layer on the outside.

Customer requirement: DR imaging, suitable test fixture, Image quality standard: NB/T47013 Class A, fast and efficient completion of projects

Key points of the solution:
1. The DR imaging system, equipped with test fixtures, radiation sources, and all three parts of operation are integrated into one software to achieve efficient fully automated weld seam detection.
2. Image transmission should be stable and efficient, without any loss or incompleteness
3. Image processing and image evaluation can be carried out synchronously to accelerate the progress of the project.

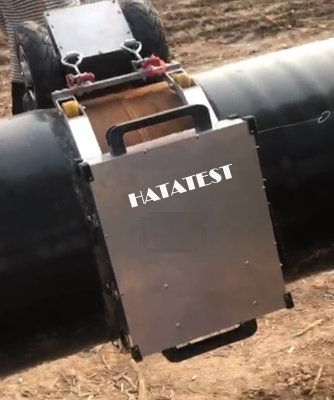

Finished product: PT360 pipeline welding seam automation detection system
