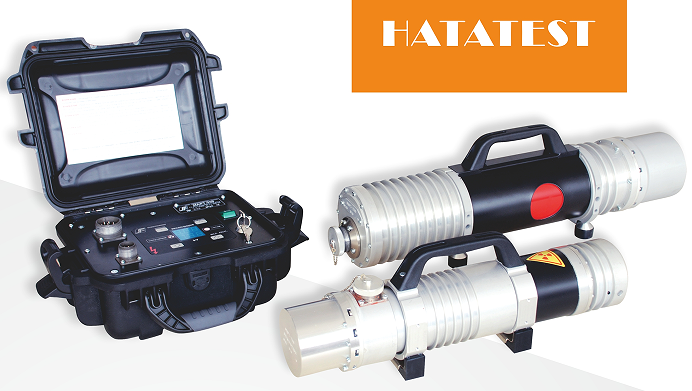

The HATATEST MAPT series industrial X-ray machine is a high-frequency constant voltage industrial X-ray equipment
The characteristics of MAPT 250 and MAPT 200 industrial X-ray generator are as follows:
1. Digital controller, which can adjust voltage and control radiation switch through computer software, and can also adjust voltage through touch buttons
2. Automatic training machine with digital display
3. Compact and lightweight body (250KV generator weighs 8.5kg, 200KV generator weighs 5kg, controller weighs 3.7kg)
4. Low power consumption, high efficiency of the radiation tube, and the ability to effectively convert energy into X-rays instead of heat.
| parameter | MAPT 200 | MAPT 250 |
| Type of X-ray machine | High frequency constant voltage | |
| Training method | Automatic training machine | |
| X-ray tube voltage | 100-200kv Stepless adjustment | 130-250KV |
| Focus size of radiation | 3mm | 1.5mm |
| Radiation angle | 150° | 40° |
| Max penetration capability (A3) | 30mm | 40mm |
| Tube frequency | 170kHz | 100kHz |
| X-ray transmission method | Directional and semi circumferential | Directional |
| Generator weight | 5 kgs | 8.5 kgs |
| Generator size | 435x85x140mm | 580x115x180mm |
| Controller weight | 3.7kgs | 3.7kgs |
| Controller size | 320x260x155mm | 320x260x155mm |
| Tube current | 2mA | 2.5mA |
| X-ray tube | Specially designed high-frequency tube | |
| Insulation method | Oil insulation | |
| cooling method | natural cooling | |
| equipment power supply | 220+/-22V | |
| Maximum exposure time | 10min | |
| control line | 30M | |
| power cord | 7M | |
| Remarks |
Military high-frequency control line diameter 0.95CM, weight 3KGS, power line diameter 0.95CM, weight 1KG |
|
