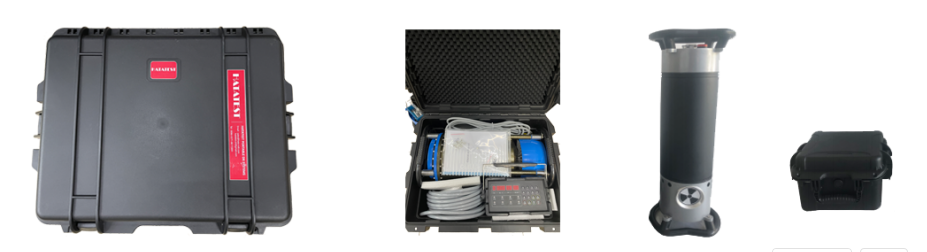

The HATATEST HT series industrial X-ray machine is currently the smallest series of domestically produced industrial protable X-ray machines in terms of volume. The advantages of this series of products are as follows:
1. The model is relatively small and lightweight, with a 250KV radiation generator weighing 18.5KG
2. Can work continuously for up to 10 minutes
3. It can achieve computer software system control of the power and switch of the X-ray machine
4. English version system operation and voice broadcast
5. A micro focal point size of 1.0x1.0mm, provides clearer radiographic images.
| Type |
HT250D |
HT300D |
HTS250D |
|
| Maximum penetration thickness (A3 steel); | 40mm | 50mm | 40mm | |
|
Input |
Voltage V |
220V±10%,50~60HZ |
||
| Capacitance KVA | 2.5 | 3.0 | 2.5 | |
|
Output |
voltage V | 100~250 | 150~300 | 100~250 |
| tube current mA |
5mA |
|||
| fluctuation |
±1% |
|||
| X ray Tube | Focus mm² | D:1.0x1.0mm | D:1.0x1.0mm | D:1.5x1.5mm |
| Radiation angle | D:40+5° | D:40+5° | D:45° | |
| sensitivity |
K≤1.8% |
|||
| working method |
Intermittent work, without cutting off the power supply, |
5minutes |
||
| Working temperature environment |
—10℃~+40℃ |
|||
|
X ray generator |
cooling method | forced air coolin | ||
| Insulation method | SF6 Gas insulation | |||
| gas pressure |
0.35Mpa~0.45Mpa |
|||
| Size mm | Φ190×680mm Excluding carrying rings | Φ205×690mm Excluding carrying rings | Φ225x225x560 including carrying rings | |
| Weight Kg | 18.5 | 25.6 | 17.5 | |
| Line structure | Digital control, modular structure, intelligent voice | |||
| Controller | Size mm |
270×270×150 |
||
| Weight Kg |
8 |
|||
| Cable | Cable length of 20 meters, power cord length of 5 meters, (customizable) | |||
