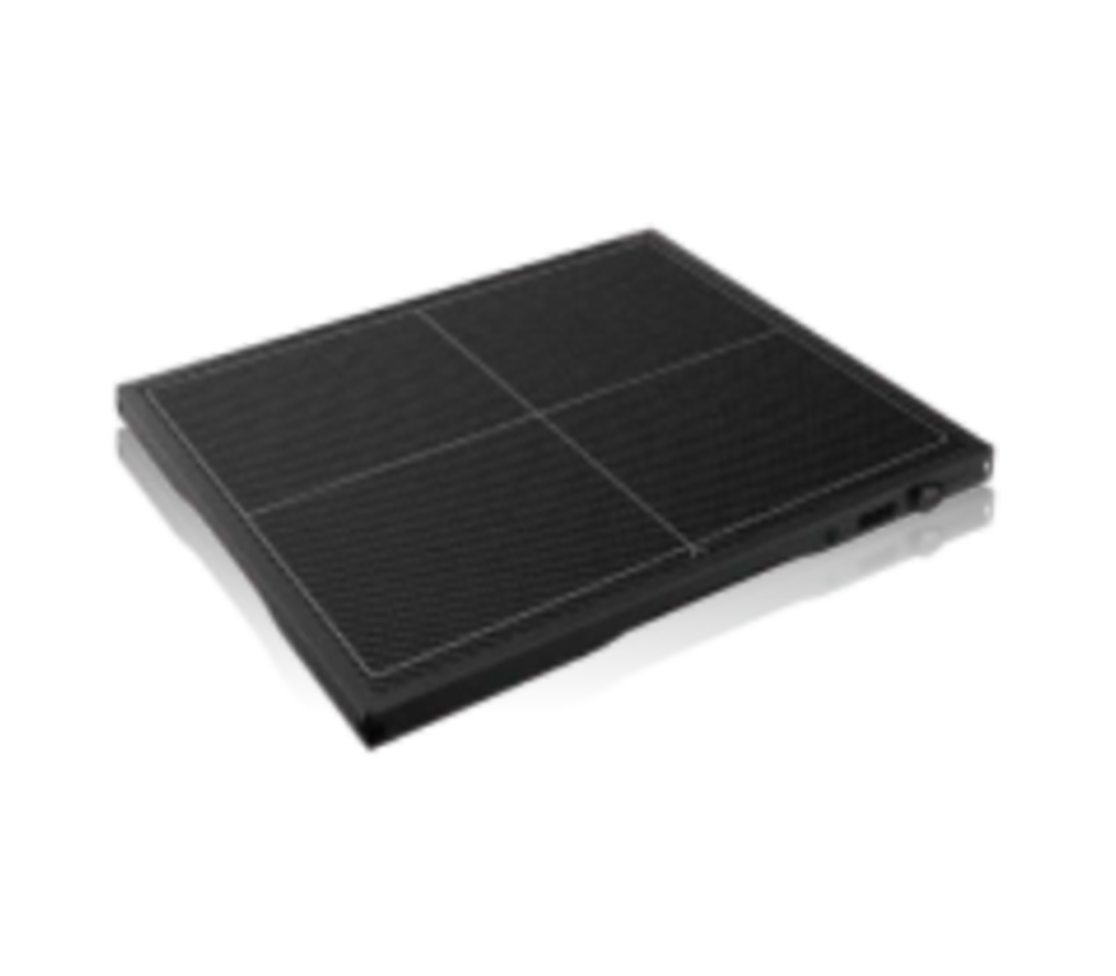

Me1417 is a flexible amorphous silicon industrial flat imaging flat panel detector with dimensions of 14x17 inches (350x430mm). HATATEST Me1417 NDT DR detector adopts innovative flexible amorphous silicon sensor technology, stable and reliable AED control, and lightweight design with 100 micron pixels, allowing customers to obtain ultra high definition images stably and quickly.
Specification of Me1417 industrial DR detector
| Type of Detector | amorphous silicon |
| Scintillator | GOS |
| Pixel Pitch | 100μm |
| Pixel matrix | 3500x4300 |
| Imaging area | 350x430 |
| Limiting Resolution | 5.0Ip/mm |
| A/D | 16bit |
| Maximum frame rate (fps) | 1 |
| Maximum exposure window (s) | Max 180 |
| ECU data interface | Wired:GigE(≥100Mbps) , WIFI: 802.11, a/g/n ((≥100Mbps) |
| Trigger method | AED/Soft trigger |
| Energy Range (kV) | 40~300kV |
| Waterproof and dustproof | IP65 |
| Size | 465x390x20 |
| Weight | 4.2kg |
| power consumption | Max 20W |
| Operating temperature (℃) | -20~50 |
| Storage temperature (℃) | -20~55 |
| Operating humidity (% RH) (no condensation) | 10~90 |
| Moderate storage (% RH) (no condensation) | 5~95 |

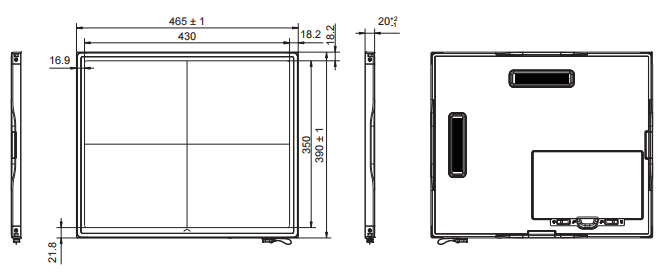

Me1417 NDT DR imaging detector panel Size specification
