HT0412 is an industrial DR flat panel detector designed specifically for weld seams. HT0412 advanced NDT DR imager compact size not only meets the requirements of weld seam inspection but also saves costs. The smaller size and lighter weight make this NDT DR detector more portable and highly favored by users.

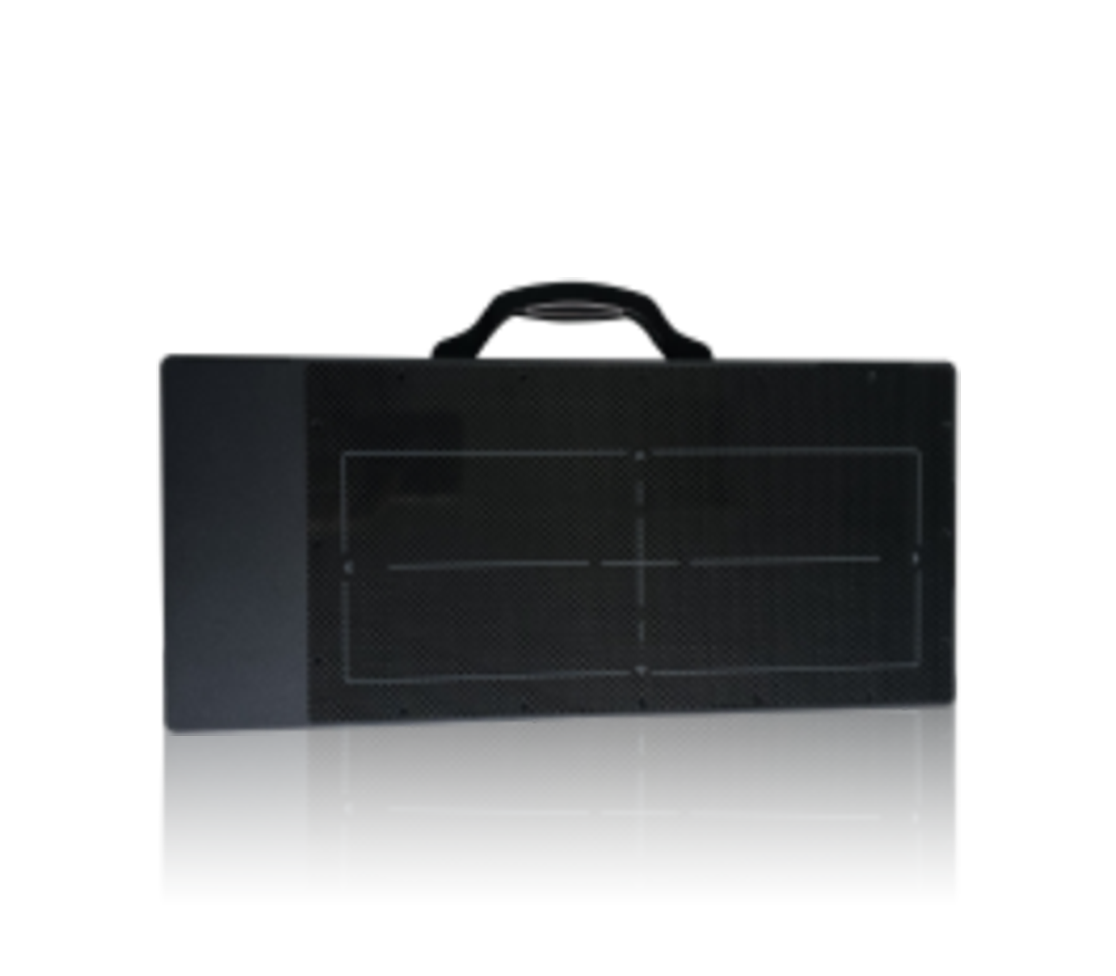

HT0412 Specialized DR detector for welding seams
| Limiting Resolution | 3.9 lp/mm |
| scintillator | Csl |
| Pixel spacing (µm) | 127 |
| Effective activity area (mm) | 97.7x292.6 |
| Effective pixel matrix | 769x2304 |
| Maximum exposure window (s) | Max 10 |
| AD conversion (bit) | 14/16 |
| Trigger method | AED/Line trigger |
| Energy Range (kV) | 40-330 |
| Waterproof and dustproof | IP54 |
| Dimensions (mm) | 160x400x30mm |
| Interface(1)Wired | 1Gbps Ethernet;(2)Wireless : 802.11 a/g/n Wireless LAN |
| Weight (kg) | ≤2.3kg (include Battery, Handle) |
| Operating temperature (℃) | -20~50 |
| Storage temperature (℃) | -20~60 |
| Battery property: | 360 images |
| Battery worrking time | Min 4 hours |
